A ntw_logicblock entity record represents a logic block definition. The definition includes properties of the Block, such as the name of the Logic Block, the Project to which the Block is related, and its configuration in the form of a JSON (JavaScript Object Notation) document.
The two plugins FlowOn.Crm.LogicBlocks.Plugins.LogicBlockPlugin and FlowOn.Crm.LogicBlocks.Plugins.InvokeLogicBlockPlugin plays a pivotal role during the lifetime of a logic block definition.
FlowOn.Crm.LogicBlocks.Plugins.LogicBlockPlugin plugin supervises the customizations for Blocks. This Plugin springs into action whenever you create a new block, make changes, or delete it. The Plugin validates configuration and performs the necessary customizations in response to updates. This supervision manifests in a few plugin registration steps (Figure 1: FlowOn Block).

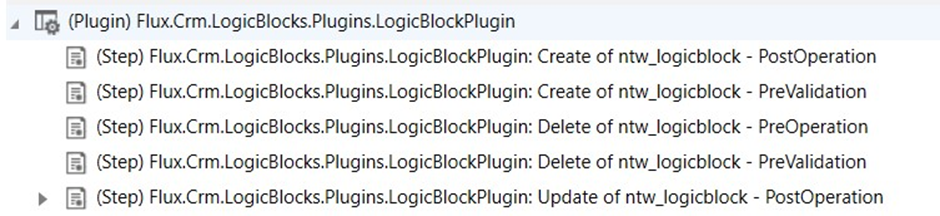

Figure 1: Flux Block
Blocks Plugin Steps
| Message | Stage | Description |
|---|---|---|
| Create | PreValidation | Upon creating a Logic Block, the Plugin performs a series of validations to ensure the integrity of the configuration. The Plugin blocks the creation of the Block in case of validation failures. |
| Create | PostOperation | Following successful validation, this Plugin performs customizations by introducing a process action and registering a new plugin step only if the Is Action flag is true. (Figure 2: Block Create Customizations) |
| Delete | PreValidation | Before the deletion of the Block, the Plugin performs a series of validations to ensure that this Block does not serve as a dependency for any other component. |
| Delete | PreOperation | Following successful validation, this Plugin removes the registered plugin registration step and the process action only if the isAction flag is true. (Figure 4: Block Delete Customizations) |
| Update | PostOperation | After updating a Logic Block, the Plugin updates the plugin registration step and the process action if the 'isAction' flag is true. If the 'isAction' flag is false, and the previous state of the 'isAction' flag was true before the update, the Plugin deletes the registration step and the process action. (Figure 3: Block Update Customizations) |
Table 1: Blocks Plugin Steps
Block Creation
When a block is created and marked as 'isAction,' the Plugin generates a CRM process action with input and output arguments matching the Block's configuration. Dynamics subsequently creates a specialized SDK (Software Development Kit) message and registers a plugin registration step with the necessary configuration.

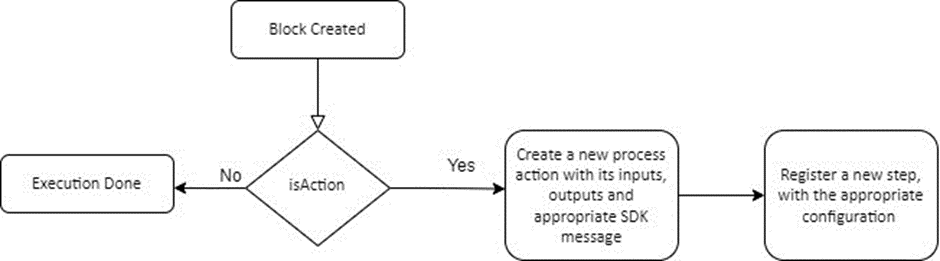

Figure 2: Block Create Customizations
Block Update & Deletion
In cases of updates, the Plugin adjusts the process action and plugin registration step configuration (Figure 3: Block Update Customizations). Please note that this Plugin is active only during block creation, modification, or management and does not intervene during execution.
Figure 3: Block Update Customizations
Likewise, upon deleting a Block, the Plugin removes the associated plugin registration step and any previously created workflow (Figure 4: Block Delete Customizations).
Figure 4: Block Delete Customizations
Each time a logic block executes through a process action, the FlowOn.Crm.LogicBlocks.Plugins.InvokeLogicBlockPlugin Plugin intercepts the call and runs the logic Block.
FlowOn Block Invoke Block Logic Plugin
Figure 5: FlowOn Block Invoke Block Logic Plugin
Process Action Request Life Cycle

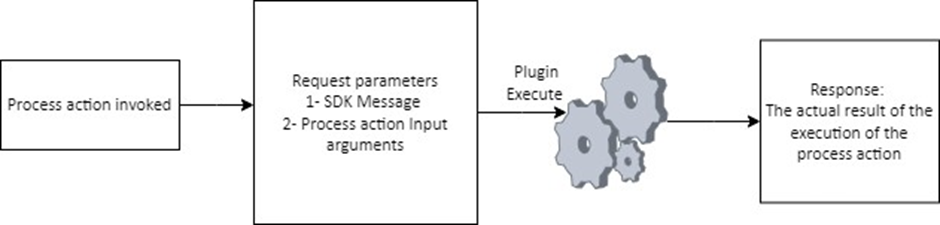

In the diagram below, the process action commences by receiving the necessary parameters: the SDK message and Process action input arguments. Following successful execution, it returns a response.
Figure 6: Process Action Request Life Cycle
What's Next
After exploring the internals of Blocks, let's now dive into the behind the scenes of flow logic.
